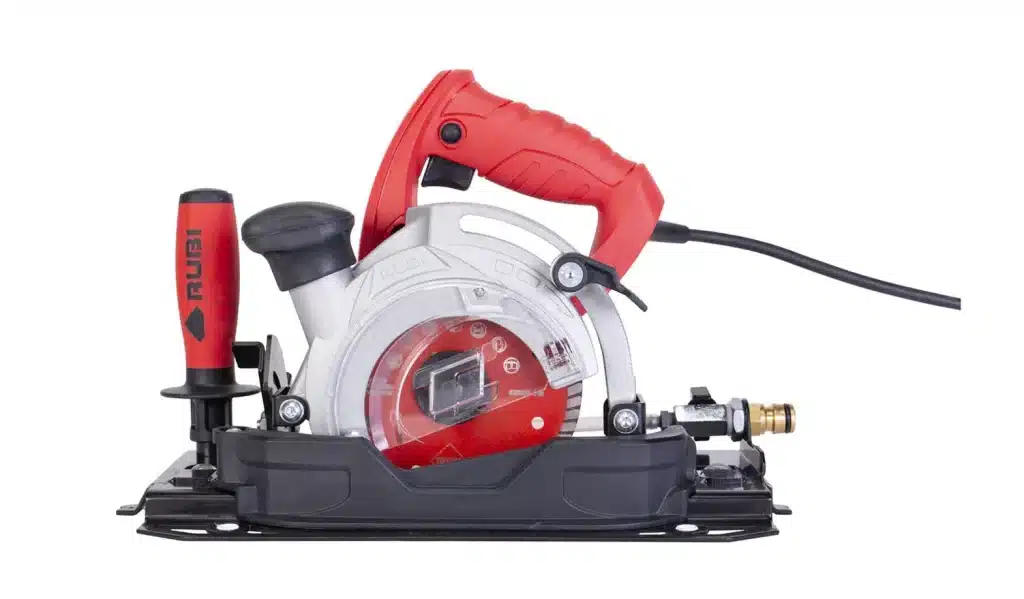

The RUBI TC-125 circular saw is designed for dry and wet sawing of ceramic tiles and natural stones, even in large formats with blade diameters of 115 and 125 mm. Also included is 1 RUBI TCR-125 SUPERPRO diamond cutting wheel, 2 suction cups, tools and a plastic carrying case.

The saw can be used with the SLIM CUTTER PLUS set (Ref: 18959) or the Tile and Clamp set (Ref: 51979) for sawing both tiles and large formats. Thanks to these sets, sawing will be even better and faster even with large format tiles.

The saw has a double dust reduction system – for dry sawing, the dust is extracted by means of an attachable vacuum cleaner (32 mm diameter); for wet sawing, the dust is reduced by a stream of water from the 16 mm inlet. This gives you greater comfort when sawing and more precise and smoother cuts thanks to the robust handles, sliding base with steel bearing wheels. The saw head is adjustable in height from 0 to 25 mm and in angle up to 45°. For better safety, the saw also has a safety switch and a rubberised handle.

Guide rails are not included.

Technical parameters:

Engine power: 1,25 kW
Motor: single phase
Power supply: 230 V; 50 Hz
Motor speed: 13 800 rpm
Cutting wheel diameter: 115/125 mm
Shaft diameter: 22.2 mm
Max. cutting depth: 20-25 mm
Bevel thickness: 14-18 mm
Connection diameter for dry cutting: 32, 37, 42, 50 mm
Connection diameter for wet cutting: 16 mm
Dimensions (lxwxh): 330 x 239 x 206 mm
Package weight: 14 kg

Includes plastic case, 2 suction cups, tools and cutting wheel RUBI TCR-125 SUPERPRO
Recommended diamond wheels: TCR, TVA, CSV, CPR

Video:

Video tutorial on how to achieve the best quality cut:
